MacOSX

• Unpacked everything, hooked it up according to the instructions.
• Turned it on.
• Picked English.
• Watched the "Welcome" video.
• Picked a US keyboard.
• Picked "United States".
• Picked US keyboard layout.
• Picked LAN for Internet connection method.
• Left Apple ID blank.
• Apple-Q past the registration.
• User name "david", random password.
• Selected Denver time.
• Date and time already correct.
• Skipped the "Don't forget to register" screen.
• Turned on screen sharing.
• Did OS detection. Already there.
• Wow, it comes with Subversion already installed. Checked out nmap.
• Figured out screen sharing: http://lifehacker.com/software/how-to/remote-control-leopard-with-tightvnc-319528.php. It works with TightVNC. Password "vnc".
• Ran software update. Wow, big update, I'll do it later.
• Installed Xcode Tools from XcodeTools.mpkg off the installation disc.
• Built Nmap. Command-line works fine. Trying to run Zenmap (python zenmap) gives


  Error in sys.excepthook:
  Traceback (most recent call last):
    File "zenmap", line 58, in excepthook
      import gtk
  ImportError: No module named gtk

  Original exception was:
  Traceback (most recent call last):
    File "zenmap", line 149, in <module>
      app.run()
    File "/Users/david/nmap/zenmap/zenmapGUI/App.py", line 96, in run
      self.__run_gui()
    File "/Users/david/nmap/zenmap/zenmapGUI/App.py", line 100, in __run_gui
      import gtk
  ImportError: No module named gtk

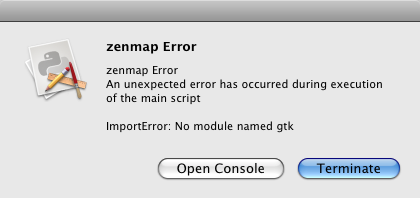

• Building a .app with python setup.py py2app works, but trying to run the resulting file gives this dialog:

• Tried downloading MacPorts 1.6.0, even though I suspect its GTK packages may require the Apple X11 server to be installed, which I consider suboptimal.
• The installer didn't make the .profile modifications it was supposed to, so I made the changes suggested at http://guide.macports.org/#installing.shell.
• sudo port install py25-gtk
  That installed a ton of packages: atk, cairo, docbook-xml-4.1.2, docbook-xsl, expat, fftw-3, fontconfig, freetype, g95, getopt, gettext, glib2, gnome-common, gtk-doc, gtk2, intltool, jpeg, libglade2, libiconv, libpng, libxml2, libxslt, ncurses, ncursesw, openssl, p5-xml-parser, pango, perl5.8, pkgconfig, py25-cairo, py25-gobject, py25-gtk, py25-hashlib, py25-numpy, python25, rarian, render, shared-mime-info, tiff, Xft2, xmlcatmgr, xorg-util-macros, xorg-xproto, xrender, zlib.
• Now ./zenmap doesn't work, but /opt/local/bin/python2.5 zenmap starts up X11 and shows a dialog saying sqlite3 isn't found.
• sudo port install py25-sqlite3
• Now /opt/local/bin/python2.5 zenmap gives this crash:

  I don't feel like tracking that down as it seems to be a MacPorts problem. Instead I'll try building a native GTK+. Also MacPorts doesn't have a py2app for Python 2.5.
• for a in `port installed | grep '^ ' | sed -e 's/@.*//'`; do port deactivate $a; done to turn off MacPorts so it won't interfere.
• See instructions at http://developer.imendio.com/projects/gtk-macosx/build-instructions.
• jhbuild bootstrap
• sudo jhbuild build
• It hung up on libjpeg because ijg.org wasn't resolvable. I downloaded the source tarball from a mirror, put it in $HOME/Source/pkgs, and chose the "force_checkout" option.
• It worked, and I can run gtk-demo.
• Downloaded pygobject-2.14.1.tar.bz2 and pygtk-2.12.1.tar.bz2.
• ./configure in pygobject, had to add /opt/gtk/bin to PATH for pkg-config. sudo make install.
• PKG_CONFIG_PATH=/usr/local/lib/pkgconfig ./configure in pygtk.
• pygtk chokes on a dependency on pycairo, even though it's supposed to be able to build without it, so download pycairo-1.4.12.tar.gz.
• ./configure, make, make install in pycairo.
• PKG_CONFIG_PATH=/usr/local/lib/pkgconfig ./configure CFLAGS=-I/opt/gtk/include LDFLAGS=-L/opt/gtk/lib
• This put everything in /usr/local/bin, /usr/local/include, etc., except for Python packages in /Library/Python/2.5/site-packages.
• Crap, hit the _PyGBoxed_Type problem reported earlier.
• Tried installing pygobject with distutils on a recommendation from this page.
• Okay, now importing gobject works. Now importing gtk gives a different missing symbol. Try building PyGTK with distutils: CFLAGS=-I/usr/local/include/pygtk-2.0 python setup.py build.
• Now do it with pycairo.
• This put Python modules in /Library/Python/2.5/site-packages, a postinstall script in /usr/local/bin, and data files in /System/Library/Frameworks/Python.framework/\
Versions/2.5/{include,share}. Also silently put pkg-config files in /System/Library/Frameworks/Python.framework/Versions/2.5/lib/pkgconfig.

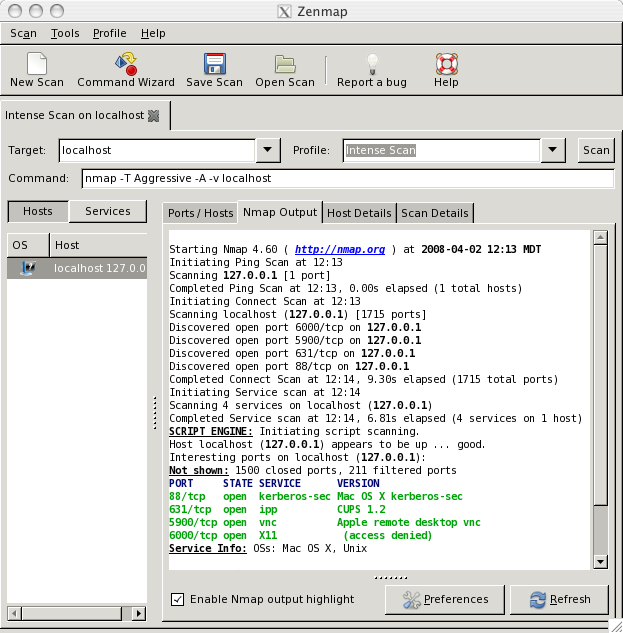

• Success!

  It runs all right. The screen won't minimize, I think because of a problem in the GTK+ port. The menu bar at the top of the screen just says "Python". You get a little rocketship icon in the dock.
• I kind of got a .app package built. It runs and gives you the "you're not root" dialog, but then the main window doesn't repaint itself and stops responding. (You need to "force quit.")
• Ran a software update to 10.5.2 and rebooted.
• As root,
  rm -r /usr/local/{bin,include,lib,liibexec,share}
rm -r /Library/Python/2.5/site-packages/*
rm -r /System/Library/Frameworks/Python.framework/\
Versions/2.5/{include/*,lib/pkgconfig,share/*}
• See if there are any other new files with sudo find / -newerBB /opt/local | tee find-new.log.
• I should probably use Time Machine to back things up while I'm experimenting but it seems to require an external disk or partition.
• sudo port uninstall py25-sqlite3 sqlite3
• for a in `port installed | grep '^ ' | sed -e 's/@.*//'`; do port activate $a; done
• export PYTHONPATH=/opt/local/lib/python2.5/site-packages:\
/opt/local/lib/python2.5/site-packages/gtk-2.0
• ./configure --prefix=/usr/local, make, make install in nmap.
• Crap, I shouldn't have deleted /System/Library/Frameworks/Python.framework/Versions/2.5/include/python2.5. Copy it from the MacPorts version. Later I replaced it with the files from the MacPython 2.5.1 distribution.
• PATH=/usr/local/bin:$PATH
• PYTHONPATH=/usr/local/lib/python2.5/site-packages:$PYTHONPATH
• zenmap

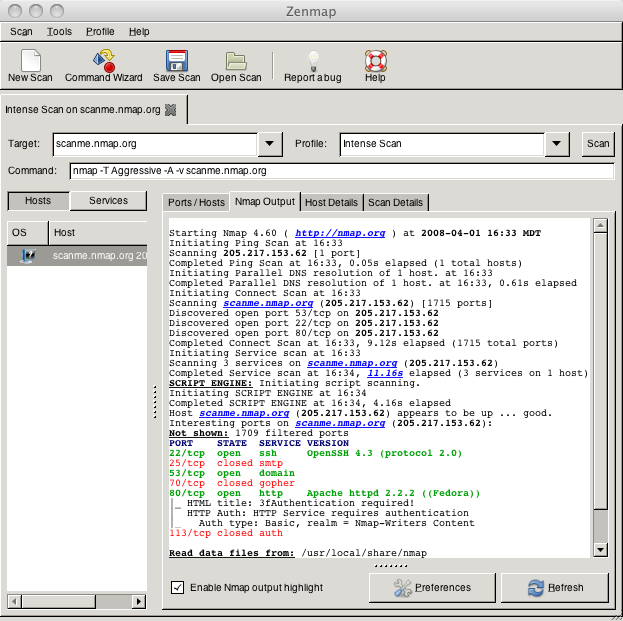

• Success!

• Made a change to how Zenmap overrides the module search path at install time.
• This uses a mixture of Mac OS X Python libraries and MacPorts libraries. I read from this page that the problem may be with the packaging of sqlite3. So try something new:
• sudo port install py25-sqlite3 which brings in sqlite3 as a dependency.
• sudo port uninstall -f sqlite3 which uninstalls sqlite3 without uninstalling py25-sqlite3.
• ./configure, make PYTHON=/opt/local/bin/python2.5, sudo make install.
• /usr/local/bin/zenmap works. With sudo too. And nothing weird in the environment.
• That works pretty good for MacPorts. Let's try Fink.

Fink

• Downloaded fink-0.28.1.tar.gz
• ./bootstrap
• Enable unstable distribution.
• . /sw/bin/init.sh
• fink selfupdate; choose "rsync".
• fink -b install nmap
• /sw/bin/zenmap

Another stab a making a .app bundle

• Looked at Advene, who have all kinds of wicked hacks to make a PyGTK bundle work.
• Got a "Hello, world" app built. Only 18 MB! (Uncompressed.)

Making it work for Zenmap

• sudo port install py25-zlib (for compressed executable).

Trying to build universal libraries

• Uninstalled all the packages.
• You should be able to do sudo install py25-gtk +universal, but that fails due to this bug.
• The python25 package doesn't build with the universal variant: issue #14923. So I had to patch it to remove $(LDFLAGS) from the /usr/bin/libtool line.
• I had to modify the portfiles for py25-hashlib, py25-libxml2, py25-numeric, py25-numpy, py25-sqlite3, and py25-zlib to add universal_variant no.
• sudo port install py25-gtk +universal
• sudo port install py25-sqlite3 +universal
• sudo port install py25-zlib +universal
• Now make the bundle. For some reason it works this time without uninstalling sqlite3.
• The universal app is 45.9 MB, compared to about 24 MB for the Intel-only app.

Making it reproducible

• Download source MacPorts-1.6.0.tar.bz2.
• Build source for multiple installation as described here, using the prefix /opt/local-universal.
• export PATH=/bin:/sbin:/usr/bin:/usr/sbin:/usr/X11/bin (the "/usr/X11/bin" is because of this bug.
• sudo mkdir /Library/Tcl/macports-universal
• ./configure --prefix=/opt/local-universal --with-tclpackage=/Library/Tcl/macports-universal
• make
• sudo make install
• sudo vi /opt/local-universal/etc/macports/variants.conf; add +universal.
• sudo /opt/local-universal/bin/port selfupdate
• mkdir -p ~/macports-sources/ports/python
• cp -R /opt/local-universal/var/macports/sources/\
rsync.macports.org/release/ports/python/\
{py25-hashlib,py25-libxml2,py25-numeric,py25-numpy,py25-sqlite3,py25-zlib} \
~/macports-sources/ports/python/
• mkdir -p ~/macports-sources/ports/lang
• cp -R /opt/local-universal/var/macports/sources/\
rsync.macports.org/release/ports/lang/python25 ~/macports-sources/ports/lang/
• Apply necessary changes to the tree.
• ln -s /opt/local-universal/var/macports/sources/rsync.macports.org/release/ports ~/macports-sources/ports.orig
• cd ~/macports-sources
• diff -ru -x PortIndex ports.orig ports | grep -v '^Only in' > macports-1.6.0-universal.diff
• sudo vi /opt/local-universal/etc/macports/sources.conf; add file:///Users/david/macports-sources/ports/ above the rsync line.
• cd ~/macports-sources/ports/
• sudo /opt/local-universal/bin/portindex
• sudo /opt/local-universal/bin/port install py25-gtk py25-sqlite3 py25-zlib

Screenshot

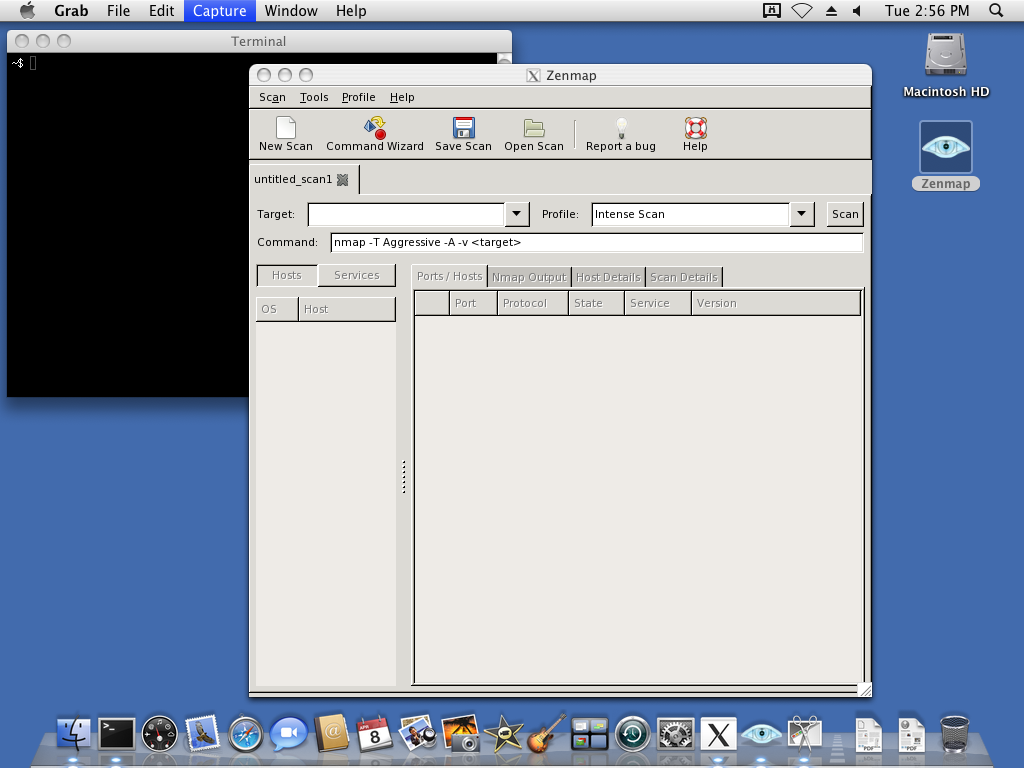

Full-screen screenshot

Making universal work for 10.4

I have a feeling some of the crashes are because my libraries are compiled to be universal on 10.5 only. You have to give arguments like the location of the SDK and -mmacosx-version-min to make it work on 10.4 also. MacPorts has configuration variables to control these (universal_target, universal_sysroot, universal_archs), but they aren't in the 1.6.0 version. I checked out revision 36289 from Subversion.

• svn co http://svn.macports.org/repository/macports/trunk/base MacPorts-svn
• cd MacPorts-svn
• export PATH=/bin:/sbin:/usr/bin:/usr/sbin:/usr/X11/bin
• sudo mkdir /Library/Tcl/macports-universal-10.4
• ./configure --prefix=/opt/local-universal-10.4 --with-tclpackage=/Library/Tcl/macports-universal-10.4 --with-universal-target=10.4 --with-universal-sysroot=/Developer/SDKs/MacOSX10.4u.sdk
• make
• sudo make install
• sudo vi /opt/local-universal-10.4/etc/macports/variants.conf; add +universal.
• sudo /opt/local-universal-10.4/bin/port sync ("sync", not "selfupdate", or you will get downgraded to 1.6.0!)
• sudo vi /opt/local-universal-10.4/etc/macports/sources.conf; add file:///Users/david/macports-sources/ports/ above the rsync line.
• sudo /opt/local-universal-10.4/bin/port install py25-gtk py25-sqlite3 py25-zlib
• It chokes on gtk2, because it's looking for some CUPS defines that aren't in the 10.4 SDK. I submitted ticket #15132.
• Make the necessary changes to the gtk2 portfile.
• sudo /opt/local-universal/bin/portindex
• sudo /opt/local-universal-10.4/bin/port install py25-gtk py25-sqlite3 py25-zlib

glib fixes

It turns out glib2 needs a patch that I copied from Inkscape. I applied the patch and rebuilt the port index. I had trouble removing just the packages that depend on glib2, so I wiped out my whole installation and reinstalled.

• sudo rm -rf /opt/local-universal-10.4
• cd ~/MacPorts-svn
• sudo make install
• Edit sources.conf.
• Edit variants.conf.
• sudo /opt/local-universal-10.4/bin/port sync
• PATH=/opt/local-universal-10.4/bin:/opt/local-universal-10.4/sbin:\
/usr/bin:/bin:/usr/sbin:/sbin:/usr/local/bin:/usr/X11/bin
• sudo /opt/local-universal-10.4/bin/port -v install py25-gtk py25-sqlite3 py25-zlib

How to force a terminal program to run translated under Rosetta

ditto -arch ppc program program-ppc
./program-ppc

Upstream MacPorts tickets submitted

• #15132: cups-config.
• #15568: py25-macholib-devel.
• #15569: Use --x-includes and --x-libraries.
• #15570: Use universal arguments.

.dmg files are disk images, basically a compressed bundle that gets mounted as a disk. This is a container around a package. It's the preferred container format. Here's a command line for building a .dmg from an .app directory.

.pkg files are installers run by the Installer application. This is known as a "managed install."

.app files are single-component packages, really just a directory recursively copied to the filesystem. This is known as "manual install." It's the preferred way to deliver applications. This is also known as a "bundle," a directory with a specific hierarchical structure.

• Bundle Programming Guide for .app.
• Apple Software Delivery Guide for .dmg.
• Configuring Your Application for easy contents of Info.plist and creating icons.
• Property List Key Reference
• Porting command-line tools to Mac OS X
• Performing Privileged Operations With Authorization Services
• Python wrapper for authorization services
• Technical Note TN2137: Building Universal Binaries from "configure"-based Open Source Projects
• Compiling for Multiple CPU Architectures
• Universal Binary Programming Guidelines

Testing with 10.6

Upgrade 10.5 → 10.6

Nmap seemed not to be working at first, not recording received packets. Ping scan didn't work. However, it worked if tcpdump was being run simultaneously. Wireshark works too, and running Wireshark makes Nmap work (only while a live capture is running).

/Developer/usr/bin was removed from my PATH, so make and gcc didn't work. When I added it back, I couldn't compile:

configure:2433: checking for C compiler default output file name
configure:2455: gcc    conftest.c  >&5
ld: library not found for -lcrt1.10.5.o
collect2: ld returned 1 exit status

After recompiling with a newly installed Xcode, I get the hang problem that has been described.
