Remote IPv6 OS classification


How I spent my summer vacation

David Fifield <>

Luis MartinGarcia

Quick start

# nmap -6 -O
OS details: Linux 2.6.32 - 3.0.0

Security implications of OS identification

Network inventory.

Tailoring of likely exploits.

Social engineering.

Threats to anonymity through fingerprinting.

How is OS fingerprinting done?

Send probes designed to uncover differences in implementations. RFC ambiguities, implementation bugs, changing standards can all lead to different replies.

Error responses are often not fully specified or fully tested. (What do you do when you receive a TCP packet with both SYN and FIN set?)

Example: Send a TCP SYN packet with the TCP timestamp option (RFC 1323). If the remote host supports timestamps, it will include the option in its response, otherwise it won't.

State of the art in IPv4 classification

As of 2011-10-18, Nmap has 3611 OS fingerprints (in a monster 66000-line database file). 711 (20%) are Linux fingerprints. 645 (18%) are Windows. 210 (6%) are Cisco devices.

A response fingerprint is compared against every fingerprint in the database, and the one with the lowest (weighted) number of mismatches is the winner. A simple pattern language allows other than exact matches. 100% matches are common.

We typically get about 1500 submissions every 6 months, and about half of those are usable. Most of the usuable ones result in a change to an existing entry, and a small fraction result in a new entry.

Fingerprint Sony PlayStation 2 game console
Class Sony | embedded || game console

Sample IPv6 implementation differences

In response to this probe

###[ IPv6 ]###
  version   = 6L
  tc        = 0L
  fl        = 74565L
  plen      = 40
  nh        = TCP
  hlim      = 53
  src       = 2001:470:1f04:155e::2
  dst       = 2600:3c01::f03c:91ff:fe93:cd19
###[ TCP ]###
     sport     = 51801
     dport     = ssh
     seq       = 3458888558
     ack       = 4263257805
     dataofs   = 10L
     reserved  = 0L
     flags     = FSPU
     window    = 256
     chksum    = 0x8d5
     urgptr    = 0
     options   = [('WScale', 10), ('NOP', None), ('MSS', 265), ('Timestamp', (4294967295, 0)), ('SAckOK', '')]

Linux 2.6.39

###[ IPv6 ]###
  version   = 6L
  tc        = 0L
  fl        = 0L
  plen      = 40
  nh        = TCP
  hlim      = 58
  src       = ::
  dst       = ::
###[ TCP ]###
     sport     = ssh
     dport     = 48586
     seq       = 2710224669
     ack       = 530265079
     dataofs   = 10L
     reserved  = 0L
     flags     = SA
     window    = 14080
     chksum    = 0xf2cf
     urgptr    = 0
     options   = [('MSS', 1420), ('SAckOK', ''), ('Timestamp', (1351602082, 4294967295)), ('NOP', None), ('WScale', 7)]

Windows Server 2003 SP1

###[ IPv6 ]###
  version   = 6L
  tc        = 0L
  fl        = 0L
  plen      = 24
  nh        = TCP
  hlim      = 128
  src       = ::
  dst       = ::
###[ TCP ]###
     sport     = microsoft_ds
     dport     = 45894
     seq       = 1705792087
     ack       = 2935989184
     dataofs   = 6L
     reserved  = 0L
     flags     = SA
     window    = 16430
     chksum    = 0x34cf
     urgptr    = 0
     options   = [('MSS', 1440)]

Brother MFC-9440CN printer

###[ IPv6 ]###
  version   = 6L
  tc        = 0L
  fl        = 0L
  plen      = 20
  nh        = TCP
  hlim      = 64
  src       = ::
  dst       = ::
###[ TCP ]###
     sport     = ftp
     dport     = 39343
     seq       = 0
     ack       = 2601789566
     dataofs   = 5L
     reserved  = 0L
     flags     = RA
     window    = 0
     chksum    = 0xdf69
     urgptr    = 0
     options   = {}

TCP options alone provide an idea of the large variety of implementations.

['MSS', 'NOP', 'NOP', 'SAckOK', 'NOP', 'NOP', 'Timestamp']
['MSS', 'NOP', 'NOP', 'SAckOK', 'NOP', 'WScale']
['MSS', 'NOP', 'NOP', 'SAckOK', 'NOP', 'WScale', 'NOP', 'NOP', 'Timestamp']
['MSS', 'NOP', 'WScale', 'NOP', 'NOP', 'SAckOK', 'NOP', 'NOP', 'Timestamp']
['MSS', 'NOP', 'WScale', 'NOP', 'NOP', 'Timestamp', 'SAckOK', 'EOL']
['MSS', 'NOP', 'WScale', 'NOP', 'NOP', 'Timestamp', 'SAckOK', 'NOP', 'NOP']
['MSS', 'NOP', 'WScale', 'SAckOK', 'Timestamp']
['MSS', 'SAckOK', 'Timestamp', 'NOP', 'WScale']
['NOP', 'NOP', 'Timestamp', 'MSS', 'NOP', 'WScale', 'NOP', 'NOP', 'SAckOK']
['SAckOK', 'Timestamp', 'MSS', 'NOP', 'WScale']

What kind of precision can we expect?

Through experience we know that an OS classification engine should be able to distinguish certain Linux micro-revisions, Windows service packs, major releases of OS X.

It is not usually possible to distinguish GNU/Linux distributions, but embedded Linux usually stands out, and iOS tends to differ from plain Mac OS X.

Sometimes distinguishing features disappear when scanning localhost (TCP initial windows).

Known examples from Linux 2.6 IPv4

Linux 2.6.8 (July 2004)
Nonzero TCP window scaling enabled by default.
Linux 2.6.22 (March 2007)
Initial TCP sequence number rate increased 15-fold (microsecond counter changed to 64 nanosecond counter).
Linux 2.6.27 (July 2008)
Order of TCP options briefly changed, then changed back after it broke on some networking equipment.
Linux 2.6.38 (December 2010)
Initial TCP congestion window increased in size from 4 segments to 10.

How the classes shake out for Linux IPv6

Linux 2.4.21
Linux 2.6.11 - 2.6.15
Linux 2.6.18 - 2.6.30
Linux 2.6.23 - 2.6.33 (embedded)
Linux 2.6.27
OpenWrt (Linux 2.6.32)
Linux 2.6.32 - 2.6.35
Linux 2.6.32 - 3.0.0
Linux 2.6.32 - 3.0.0
Linux 2.6.32 - 3.0.0
Linux 2.6.35
Linux 2.6.35 - 2.6.39 (localhost)
Vyatta Core 6.3 (Linux 2.6.37)
Linux 2.6.38 - 2.6.39
Linux 2.6.39

Full list.

The plan

Send probes, collect responses.

Convert into one-dimensional feature vectors.

Classify with LIBLINEAR on a model trained offline. (With -s 0: L2-regularized logistic regression (primal).)

Development of tests

Started with a test program and candidate list of about 150 probes.

From about 30 complete sets of responses, narrowed the list to 18 probes (not all are sent in every case).

We send up to 18 probes:

TCP sequencing probes sent 100 ms apart. All SYN to an open port with different options.
Vanilla ICMPv6 echo request.
Echo request with illegally ordered extension headers.
Node Information query.
Neighbor Solicitation (on-link targets only).
UDP to a closed port.
TCP ECN (explicit congestion notification) probe.
Various other TCP tests.

Complete dissections.

IE2 responses

The IE2 probe uses a highly bogus set of extension headers.

destination options
routing options

What’s interesting is that while all OSes reject this with an ICMPv6 Parameter Problem message, they differ on what exactly is wrong with it.

ICMP ParamPointer:    (0, 48, 56, 64)
ICMP Param Code:      (1, 2) # unrecognized Next Header, unrecognized IPv6 option

Fingerprints and feature vectors

We use 661 features so far. Sample fingerprint and feature vector.

TCP initial sequence number rate.

For each response:

Packet length.
Traffic class.

For each TCP response:

Window size.
TCP flags.
First 16 TCP option type codes.
First 16 TCP option lengths.
Value of MSS option.
Value of SackOK option.
Value of Wscale option.

Not implemented yet

IPv6 extension headers (types and lengths as with TCP_OPT_*). Some extension headers may have contents amenable to fingerprinting.

IP flow label sequence generation algorithm. (May be zero, random, sequential, equal to probe flow label.)

Guessed original hoplimit. (Can often determine hop distance though ICMPv6 calculation.)

TCP timestamp rate, GCD of initial sequence numbers, SEQ/ACK numbers.

ICMPv6 type, code, parameter problem pointer. ICMPv6 checksum (good, bad, zero?).

UDP features.

Could use fragment offsets, but too costly to induce fragmentation.


Run against its own training set.

Accuracy 141/153  92.16%

Leave-one-out cross validation. But 32/153 = 21% of examples are the lone members of their class, so the best that could be done is 121/153 = 79%.

90/153 = 58.82%
$ sudo ./nmap -6 -O -F

Nmap scan report for (2001:4860:4001:803::1011)
OS details: Linux 2.6.18 - 2.6.30

Nmap scan report for (2607:f8f0:610:4000:211:25ff:fec4:5b28)
OS details: Linux 2.4.21
Network Distance: 10 hops

Nmap scan report for (2001:4f8:fff6::22)
OS details: Microsoft Windows 7 SP1

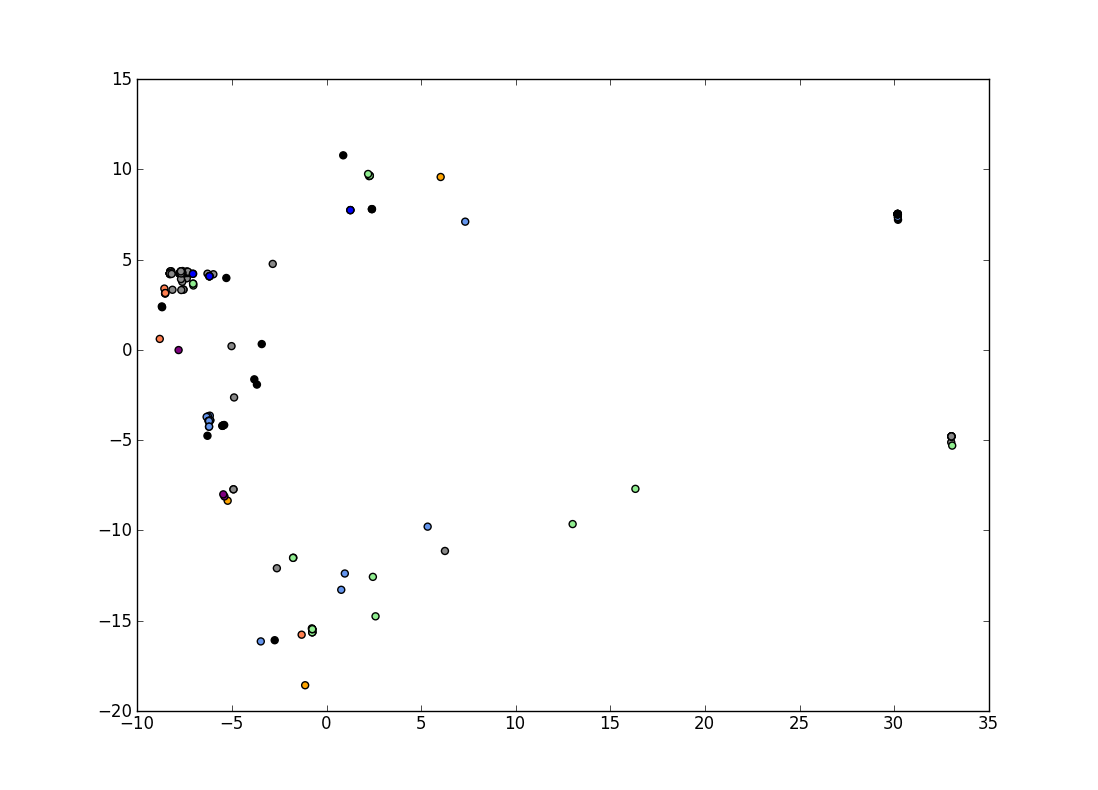

Visualization of OS classes

Mac OS X


Hard to do raw IPv6 sockets portably. Not possible to set the flow label on some platforms.

Low use of IPv6 means few signature submissions. The current database is based on 153 submissions.

Similar OSes are separated into different classes. Not classifying identical fingerprints into different classes is important.

Novelty detection. If you have a 0.9999 match, is it a really good match, or something completely different than the classifier has seen before? We handle this by checking for matches with nearly the same score.

Fingerprints for the “same” OS can differ, just because a closed port was missing, for example, or because of network filtering. Ideally we would use some kind of maximum likelihood estimation to “guess” the missing feature vector elements. But would this require the entire training set to be available at classification time?

Everything has an IP stack. A staggering number of unique devices that defy categorization.

Fingerprint 3M Filtrete 3M-50 thermostat
Fingerprint RGB Spectrum MediaWall 1500 video processor
Fingerprint RSA SecurID authentication appliance
Fingerprint WIZnet W3150A TCP/IP chip

An equally staggering number of apparently different devices that are actually the same OS underneath. (Embedded Linux is easy though.)

# VxWorks? -- Ed.
Fingerprint Aastra 57i IP phone; Nortel 4548GT switch; or Toshiba e-STUDIO 281c, 351c, 3510c, 520, or 850 printer
# VxWorks? --Ed.
Fingerprint WAP (Cisco Aironet 1010, D-Link DWL-2100AP or DWL-3200AP, Linksys WAP51AB or WAP55AG, Netgear WPN824, or Proxim ORiNOCO AP-4000M), Lights-Out remote server management, or ReplayTV 5500 DVR
# VxWorks? --Ed.
Fingerprint Dell 3115cn printer, Enterasys switch, HP Integrity iLO 2 remote management interface, Mitel 3300 PBX controller, or Nortel 5520 switch


Windows XP SP3 uses separate TCP implementations for IPv4 and IPv6! Different windows and options. Windows 7 uses the same implementation for both.

Mac OS X apparently misimplements the reply to RFC 4620 Node Information query for IPv4 addresses.

###[ IPv6 ]###
  version   = 6L
  tc        = 0L
  fl        = 0L
  plen      = 44
  nh        = ICMPv6
  hlim      = 64
  src       = ::
  dst       = ::
###[ ICMPv6 Node Information Reply - IPv4 addresses ]###
     type      = ICMP Node Information Response
     code      = Successful Reply
     cksum     = 0xf220
     qtype     = IPv4 Address
     unused    = 0L
     flags     =
     nonce     = '\x01\x02\x03\x04\x05\x06\x07\n'
     data      = [ (0,, (1768893763,, (1919905381, ]
###[ Raw ]###
        load      = 'hone'
0000000: 6000 0000 002c 3a40 0000 0000 0000 0000  `....,:@........
0000010: 0000 0000 0000 0000 0000 0000 0000 0000  .#....+Q........
0000020: 0000 0000 0000 0000 8c00 f220 0004 0000  ..`..^c.... ....
0000030: 0102 0304 0506 070a 0000 0000 1744 6172  .............Dar
0000040: 696f 2d43 6963 6361 726f 6e65 732d 6950  io-Ciccarones-iP
0000050: 686f 6e65                                hone
